GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
WARNING:
Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The typical operating range for your
transmitter is approximately 33 ft (10 m).
Vehicles with the remote start feature will
have a greater range.
One of the following could cause a
decrease in operating range:
•
Weather conditions.
•
Nearby radio towers.
•
Structures around the vehicle.
•
Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones,
battery chargers and alarm systems. If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key.
Note:
Make sure to lock your vehicle before
leaving it unattended.
Note:
If you are in range, the remote control
will operate if you press any button
unintentionally.
Note:
The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.
Intelligent Access
(If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
•
You activate the front exterior door
handle switch.
•
You press the luggage compartment
button.
•
You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
REMOTE CONTROL
Integrated Keyhead Transmitter
(If
Equipped)
Use the key blade to start your vehicle and
unlock or lock the driver door from outside
your vehicle. The integrated keyhead
transmitter functions as a programmed
ignition key that operates all the locks and
starts your vehicle, as well as a remote
control.
51
Keys and Remote Controls

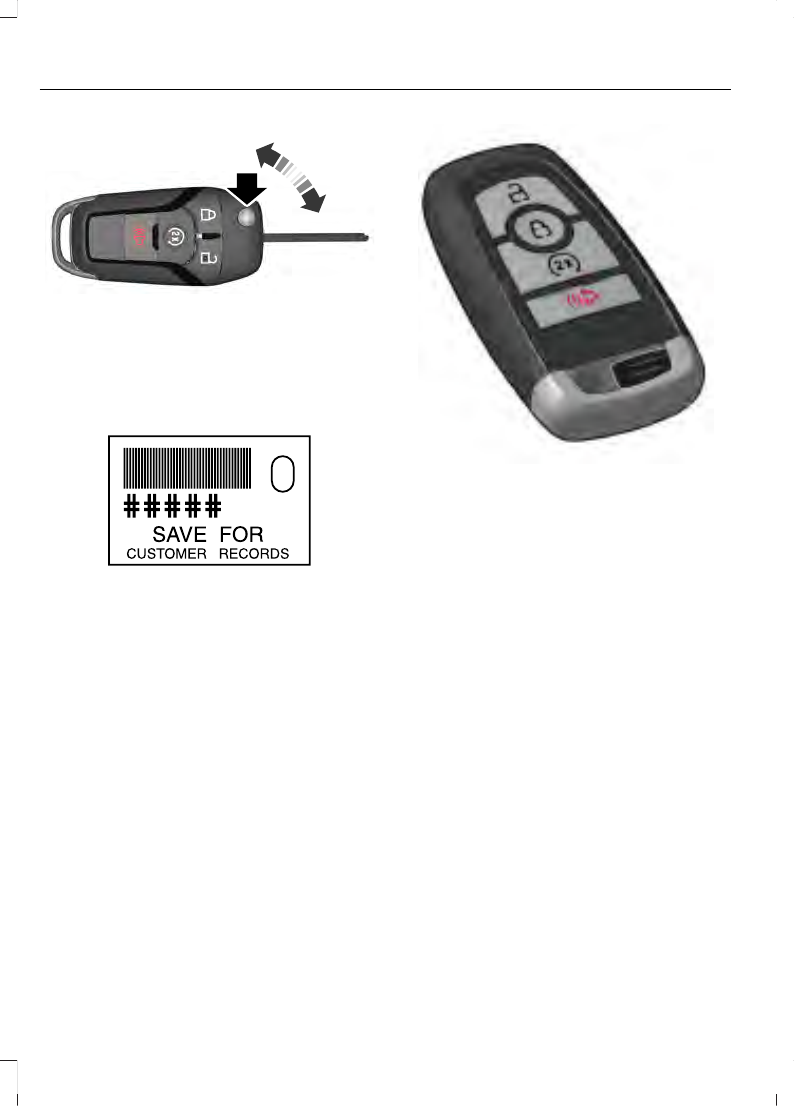

E277016
Press the button to release the key blade.
Press and hold the button to fold the key
blade back in when not in use.
E151795
Note:
Your vehicle keys came with a
security label that provides important key
cut information. Keep the label in a safe
place for future reference.
Intelligent Access Key
(If Equipped)
Note:
You may not be able to shift out of
park (P) unless the intelligent access key is
inside your vehicle.
E279948
The remote control operates the power
locks. The remote control must be in your
vehicle to use the push button start.
Removable Key Blade
The remote control also contains a
removable key blade that you can use to
unlock your vehicle.
52
Keys and Remote Controls

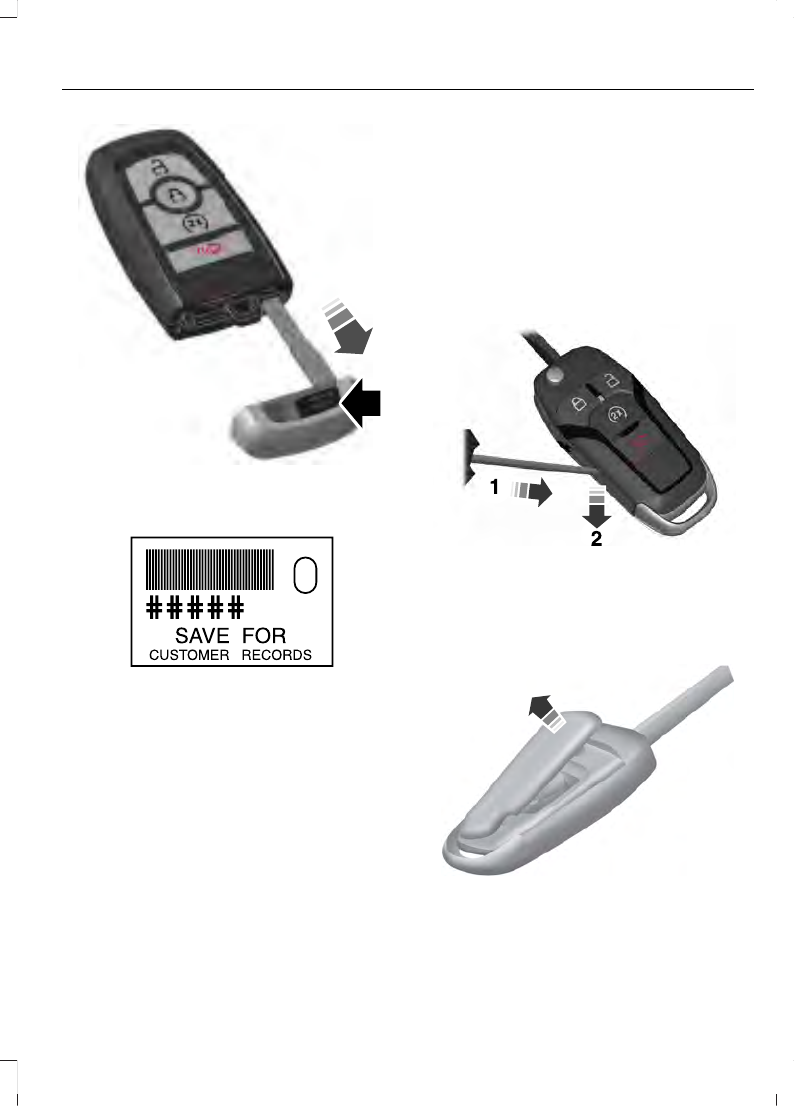

E279949
Press the release button and pull the key
blade out.
E151795
Note:
Your vehicle keys came with a
security label that provides important key
cut information. Keep the label in a safe
place for future reference.
Replacing the Battery
Note:
Refer to local regulations when
disposing of remote control batteries.
Note:
Do not wipe off any grease on the
battery terminals or on the back surface of
the circuit board.
Note:
Replacing the battery does not erase
the programmed key from your vehicle. The
remote control should operate normally.
A message appears in the information
display when the remote control battery
is low. See
Integrated Keyhead Transmitter
The remote control uses one coin-type
three-volt lithium battery.
Press the button to release the key blade
before beginning the procedure.
E277017
1.
Insert a suitable tool, for example a
screwdriver, in the position shown and
gently push the clip.
2. Press the clip down to release the
battery cover.
E151799
3. Carefully remove the cover.
53
Keys and Remote Controls

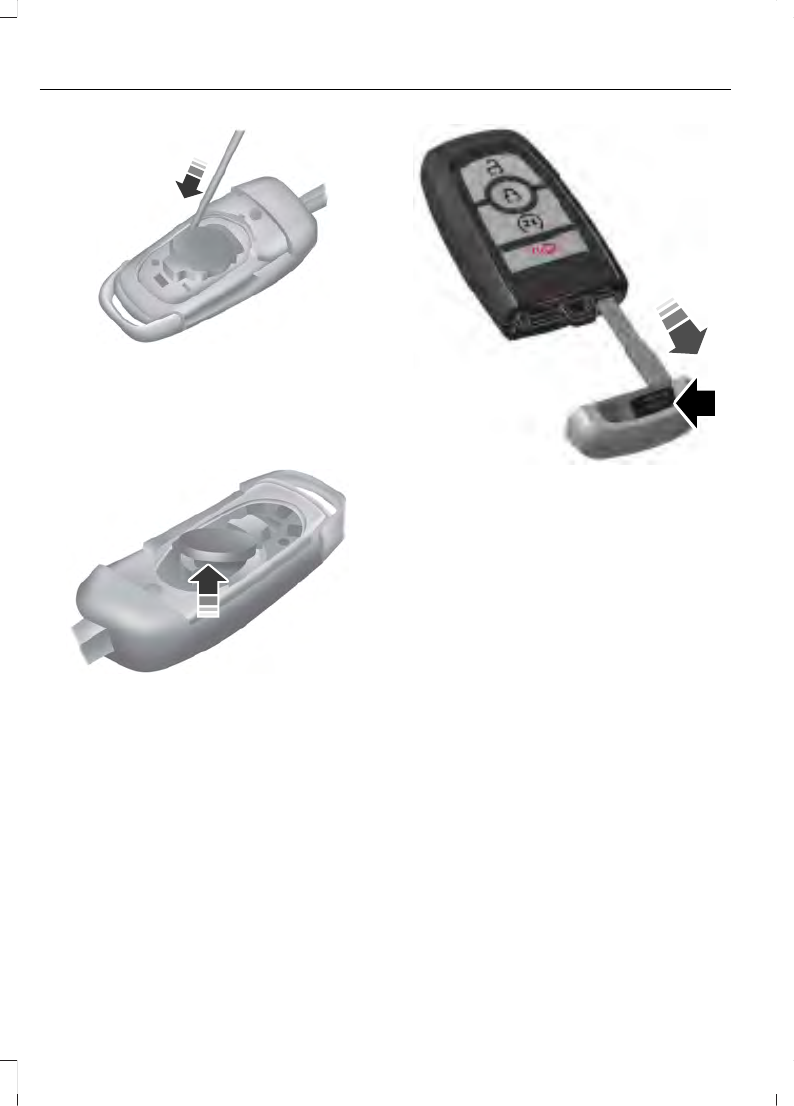

E151800
Note:
Do not touch the battery contacts or
the printed circuit board with the
screwdriver.
4. Insert a screwdriver as shown to
release the battery.
E151801
5. Remove the battery.
6. Install a new battery with the
+
facing
up.
7.
Replace the battery cover.
Intelligent Access Key
The remote control uses one coin-type
three-volt lithium battery.
E279949
1.
Push the release button and pull the
key blade out.
54
Keys and Remote Controls
E218401
2. Twist a thin coin under the tab hidden
behind the key blade head to remove
the battery cover.
E218402
3. Insert a suitable tool, for example a
screwdriver, in the position shown and
carefully remove the battery.
4. Install a new battery with the
+
facing
upward.
5. Reinstall the battery housing cover
onto the remote control and install the
key blade.
Car Finder
E138623
Press the button twice within
three seconds. The horn sounds
and the direction indicators
flash.
Sounding a Panic Alarm
(If Equipped)
Note:
The panic alarm only operates when
the ignition is off.
E138624
Press the button to activate the
alarm. Press the button again or
switch the ignition on to
deactivate.
55
Keys and Remote Controls
Remote Start
(If Equipped)
WARNING:
Do not start the engine
in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.
Note:
Do not use remote start if your fuel
level is low.
E138625
The remote start button is on the
remote control.
This feature allows you to start your
vehicle from the outside. The remote
control has an extended operating range.
If your vehicle has automatic climate
control, you can configure it to operate
when you remote start your vehicle. See
(page 117). A manual
climate control system will run at the
setting it was set to when you switched
your vehicle off.
Many states and provinces have
restrictions for the use of remote start.
Check your local and state or provincial
laws for specific requirements regarding
remote start systems.
The remote start system does not work if:
•
The ignition is on.
•
The alarm system triggers.
•
You disable the feature.
•
The hood is open.
•
The transmission is not in park (P).
•
The vehicle battery voltage is too low.
•
The service engine soon light is on.
Remote Control Feedback (If
Equipped)
An LED on the remote control provides
status feedback of remote start or stop
commands.
Status
LED
Remote start
successful
Solid green
Remote stop
successful
Solid red
Request failed or
status not received
Blinking red
Status incomplete
Blinking green
Remote Starting Your Vehicle
Note:
You must press each button within
three seconds of each other. If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators do
not flash twice and the horn does not sound.
E138626
To remote start your vehicle:
1.
Press the lock button to lock all the
doors.
2. Press the remote start button twice.
The exterior lamps flash twice.
The horn sounds if the system fails to start.
Note:
You must press the push button
ignition switch on the instrument panel once
while applying the brake pedal before
driving your vehicle.
56
Keys and Remote Controls
The power windows do not work during
remote start and the radio does not turn
on automatically.
The parking lamps remain on and your
vehicle will run for 5, 10 or 15 minutes,
depending on the setting.
Extending the Engine Running Time
To extend the engine running time duration
of your vehicle during remote start, repeat
steps 1 and 2 while the engine is running.
If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
For example, if your vehicle had been
running from the first remote start for 10
minutes, your vehicle continues to run now
for a total of 30 minutes. You can extend
the engine running time duration to a
maximum of 30 minutes.
Wait at least five seconds before remote
starting after the engine stops running.
Turning Your Vehicle Off After Remote
Starting
E138625
Press the button once. Your
vehicle and the parking lamps
turn off.
You may have to be closer to your vehicle
than when starting due to ground reflection
and the added noise of your running
vehicle.
You can switch this feature on or off in the
information display.
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement keys or remote controls can
be purchased from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle.
PASSIVE KEY BACKUP
POSITION
(IF EQUIPPED)
E272540
Place the passive key in the position
shown, with the buttons facing upward.
Make sure that you place the key fob in the
center of the cup holder.
The top or bottom end of the key must be
pointing towards the front or rear of the
vehicle.
With the key in this position, press the
brake or clutch pedal, then press the start
button to switch on your vehicle.
