For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:
Web Address (United States)
www.Accessories.Ford.com
Web Address (Canada)
www.Accessories.Ford.ca
We will repair or replace any properly
authorized dealer-installed Ford Original
Accessory found to be defective in
factory-supplied materials or workmanship
during the warranty period, as well as any
component damaged by the defective
accessories.
We will warrant your Ford Original
Accessory through the warranty that
provides the greatest benefit:
•
24 months, unlimited mileage.
•
The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Ford Licensed Accessories are the
accessory manufacturer's designs. The
manufacturer develops and therefore
warrants Ford Licensed Accessories, and
does not design or test these accessories
to Ford Motor Company engineering
requirements. Contact an authorized Ford
dealer for the manufacturer ’s limited
warranty details, and request a copy of the
Ford Licensed Accessories product limited
warranty from the accessory manufacturer.
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•
When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.
•
The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
that are equipped with radio
transmitters, for example two-way
radios, telephones and theft alarms.
Any such equipment installed in your
vehicle should comply with Federal
Communications Commission (FCC)
and Canadian Radio
Telecommunications Commission
(CRTC) regulations and should be
installed only by an authorized dealer.
•
An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.
•
If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle.
408
Accessories
AUXILIARY SWITCHES
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•
When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.
•
The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
equipped with radio transmitters, for
example, two-way radios, telephones
and theft alarms. Any such equipment
installed in your vehicle should comply
with Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulations, and
should be installed by an authorized
dealer.
•
An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.
•
If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle.
E220728

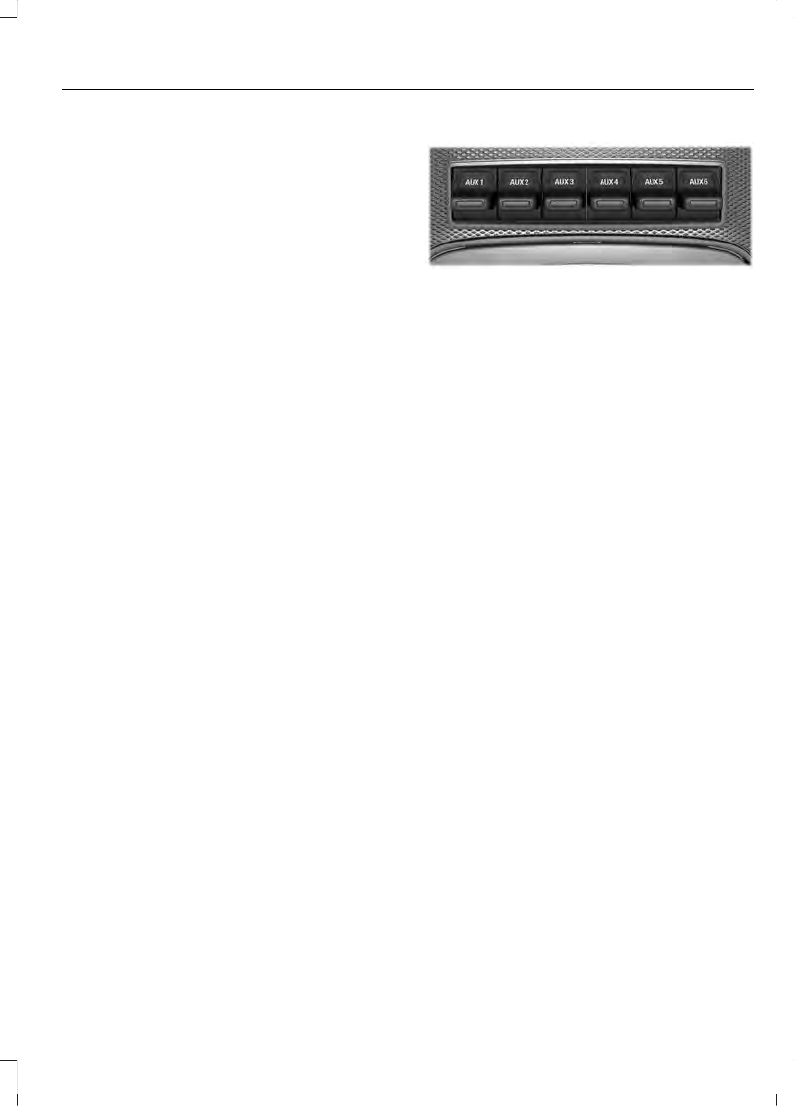

The auxiliary switch option package
provides six switches mounted in the
instrument panel. These switches operate
when the vehicle is running . We
recommend, however, that the engine
remain running to maintain battery charge
when using the auxiliary switches for
extended periods of time or higher current
draws.
When switched on, the auxiliary switches
provide electrical battery power for a
variety of personal or commercial uses.
Switch 1 is provided with 25 amps fuse.
Switch 2 is provided with 15 amps fuse.
Switch 3 is provided with 10 amps fuse.
Switches 4, 5 and 6 provided with a 5
amps fuse.
The relay box for the auxiliary switches is
in the left front of the engine compartment.
See your authorized dealer for service.

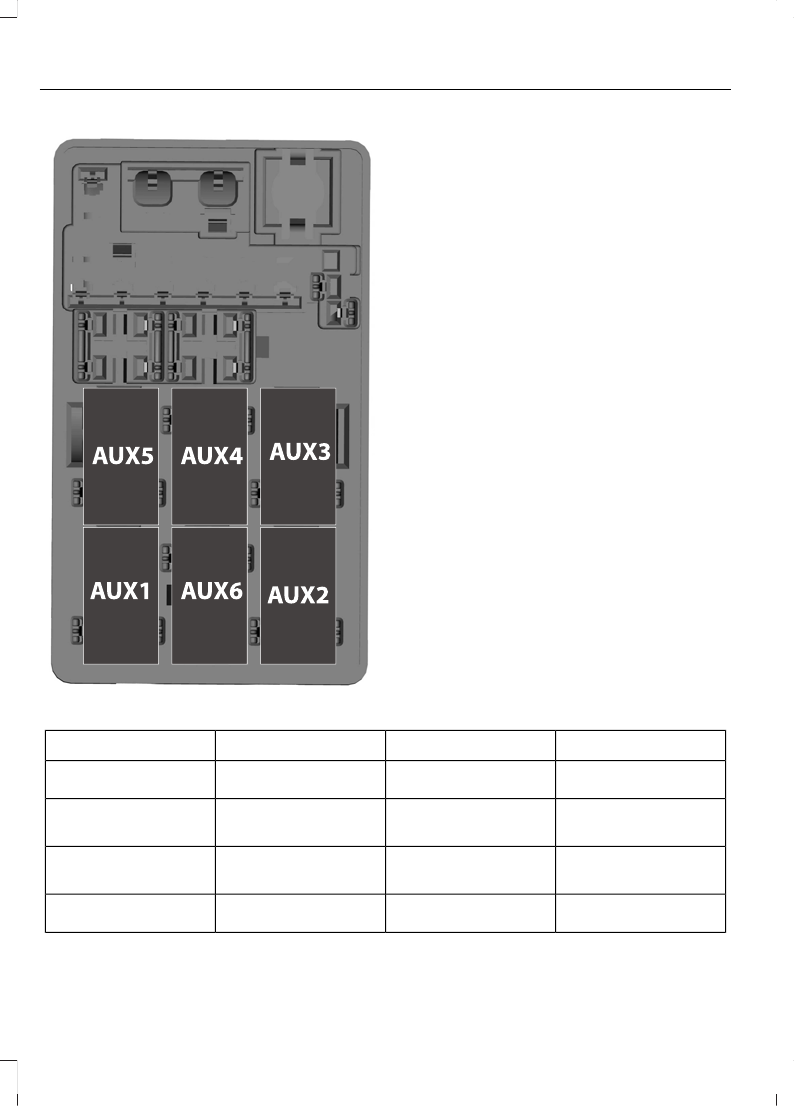

The relays are coded as shown:
409
Accessories
E332362
03
02
01
10
09
08
07
06
05
11
15
12
14
13
17
16
18
Each switch includes a blunt-cut, wire
located next to the auxiliary fuse and relay
box in the left front of the engine bay.
Protected Component
Fuse Rating
Fuse or Relay
Number
Fuse 11A and 11B.
25A
1
1
Fuse 12A and 12B.
20A
1
2
Relay AUX1.
25A
2
3
Not used.
-
4A
Not used.
-
4B
Relay AUX2.
15A
2
5
Not used.
-
6
Not used.
-
7
Not used.
-
8
Not used.
-
9
Not used.
-
10
Relay AUX3.
10A
3
11A
410
Accessories
Protected Component
Fuse Rating
Fuse or Relay
Number
Relay AUX4.
5A
3
11B
Relay AUX5.
5A
3
12A
Relay AUX6.
5A
3
12B
Relay AUX3 violet with green trace.
-
13
Relay AUX4 brown.
-
14
Relay AUX5 blue with orange trace.
-
15
Relay AUX2 green with brown trace.
-
16
Relay AUX6 yellow with orange trace.
-
17
Relay AUX1 yellow.
-
18
1
LPJ-type fuse.
2
M-type fuse.
3
Mini fuse.
411
Accessories
E333655
The power leads are coded as shown:
Fuse Amp Rating
Wire Color
Circuit Number
Switch
25A
1
Yellow
CAC05A
AUX 1
15A
1
Green with brown
trace
CAC06A
AUX 2
10A
2
Violet with green
trace
CAC07A
AUX 3
5A
2
Brown
CAC08A
AUX 4
412
Accessories
Fuse Amp Rating
Wire Color
Circuit Number
Switch
5A
2
Blue with orange
trace
CAC13A
AUX 5
5A
2
Yellow with orange
trace
CAC14A
AUX 6
1
M-type fuse.
2
Mini fuse
E332775
B
C
A

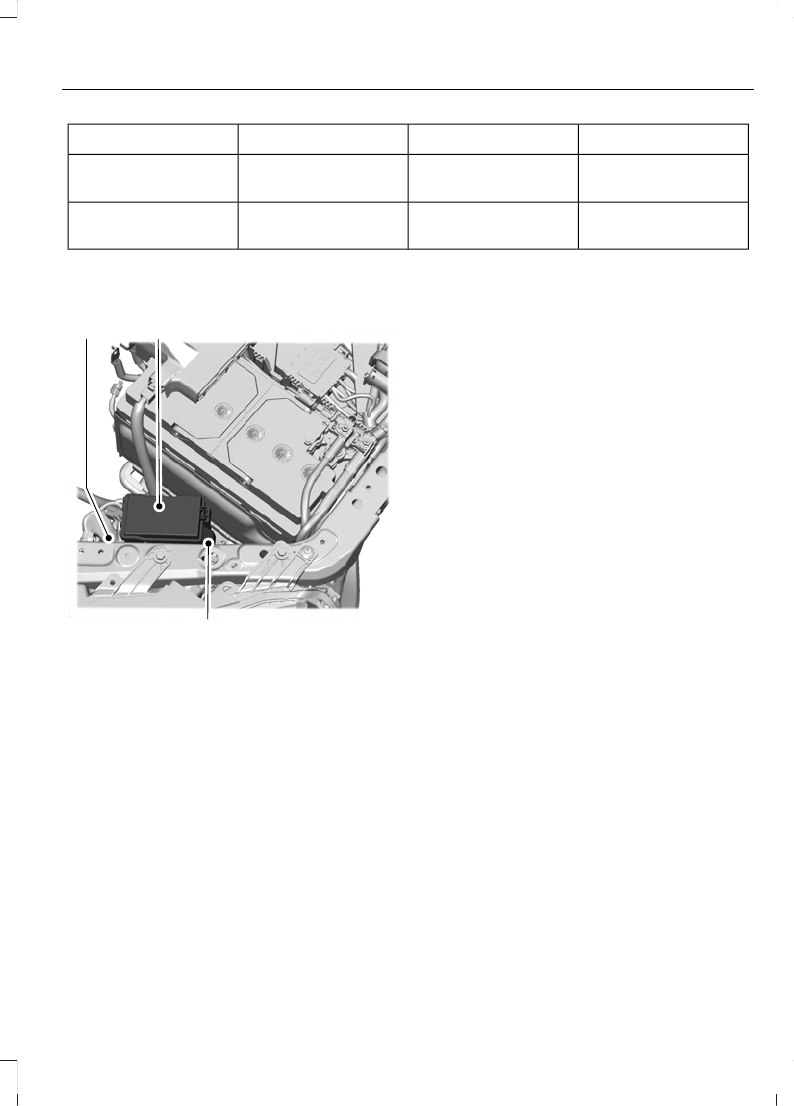

A - Press tabs to release mounting bracket.
B - Auxiliary fuse and relay box.
C - The power lead location.
413
Accessories
