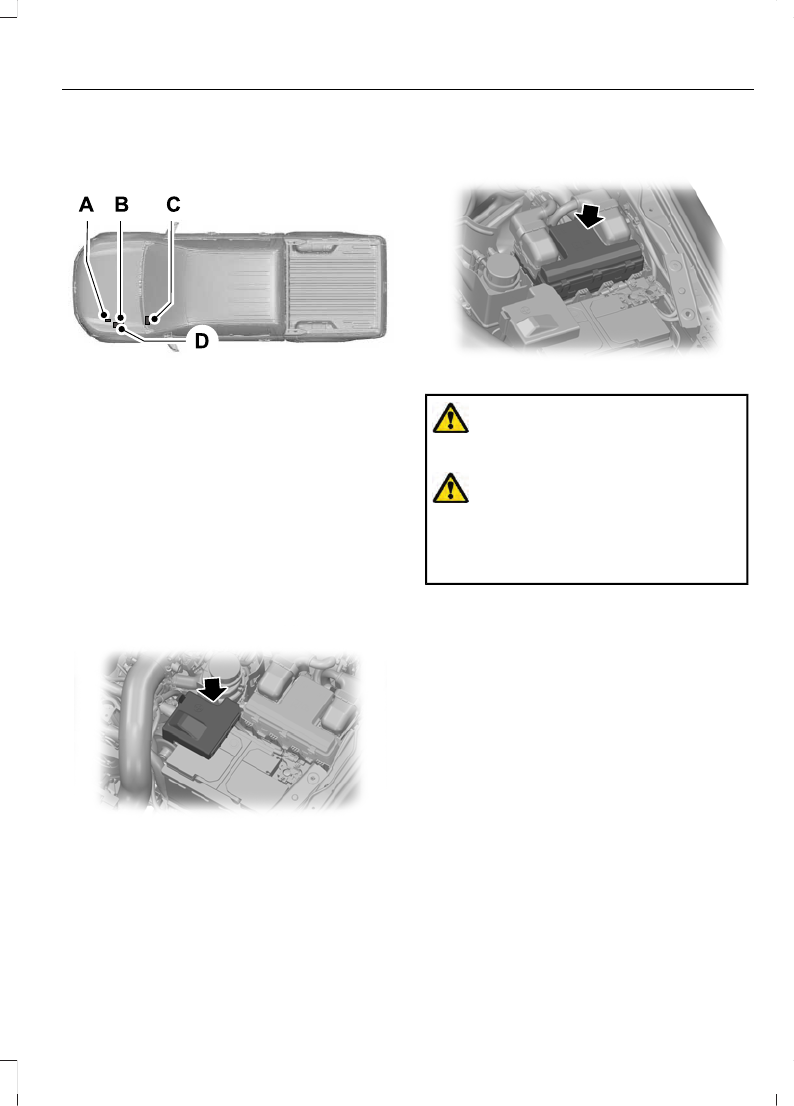

FUSE BOX LOCATIONS
Left-Hand Drive
E264973
Pre-fuse box.
A
Engine compartment fuse box.
B
Passenger compartment fuse
box.
C
High current fuse box.
D
Note:
The passenger compartment fuse
box is on the right-hand side for right-hand
drive vehicles.
Pre-fuse Box
E206156
Your vehicle has a pre-fuse box in the
engine compartment attached to the
positive battery post. This box contains
several high current fuses. If replacement
of these high current fuses is required, see
an authorized dealer.
Engine Compartment Fuse Box
E206157
WARNING:
Always disconnect the
battery before servicing high current
fuses.
WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs.
The engine compartment fuse box has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
When you disconnect and reconnect the
battery, you need to reset some features.
See
Lift the release lever at the rear of the cover
to remove it.
247
Fuses

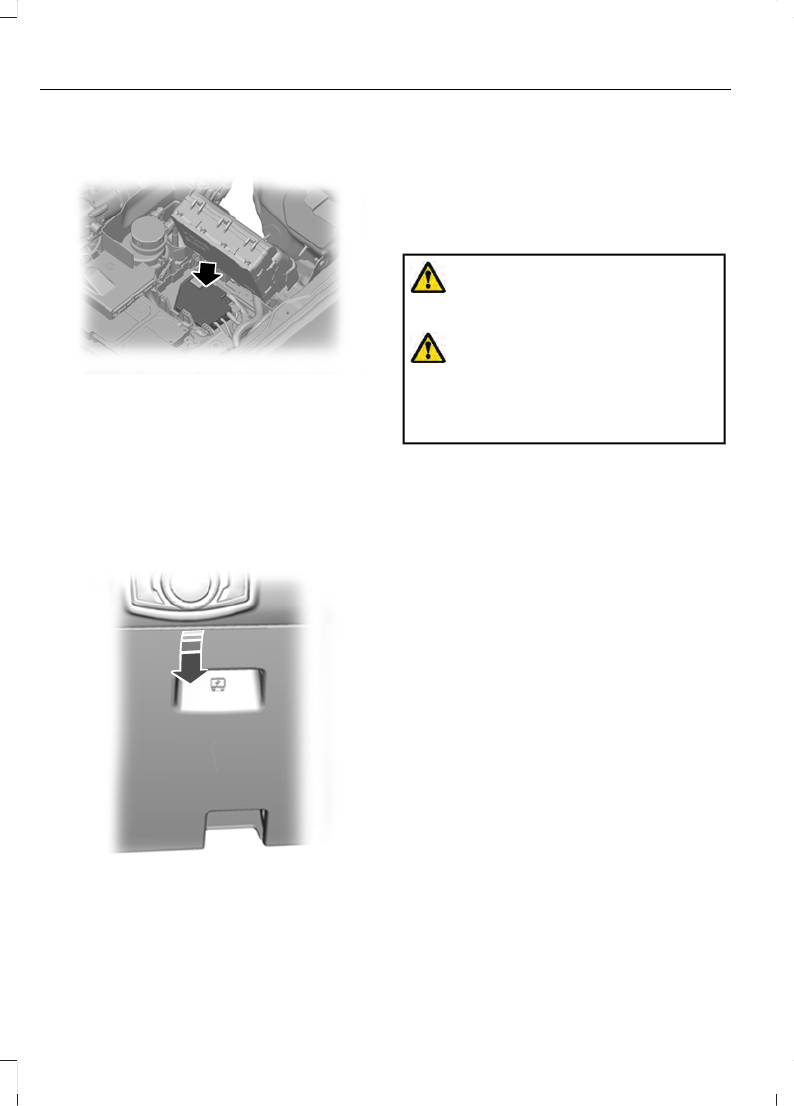

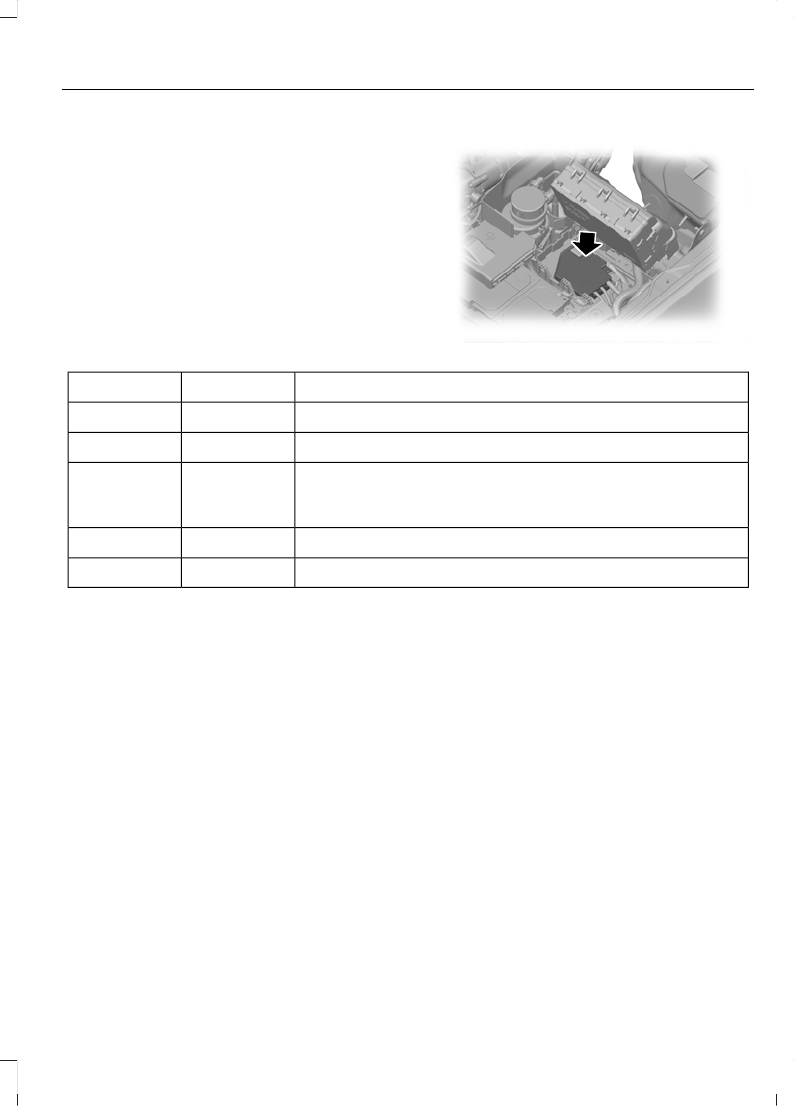

High Current Fuse Box
E206158
Your vehicle has a pre-fuse box in the
engine compartment below the engine
compartment fuse box. This box contains
several high current fuses. If replacement
of these high current fuses is required, see
an authorized dealer.
Passenger Compartment Fuse Box
E206167
The fuse box is behind the access cover on
the outermost side of the steering column.
FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
WARNING:
Always disconnect the
battery before servicing high current
fuses.
WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs.
The engine compartment fuse box has
high-current fuses that protect the
vehicle's main electrical systems from
overloads. When you disconnect and
reconnect the battery, you need to reset
some features. See
(page 274). Lift the release levers
at the rear of the cover to remove it.
248
Fuses

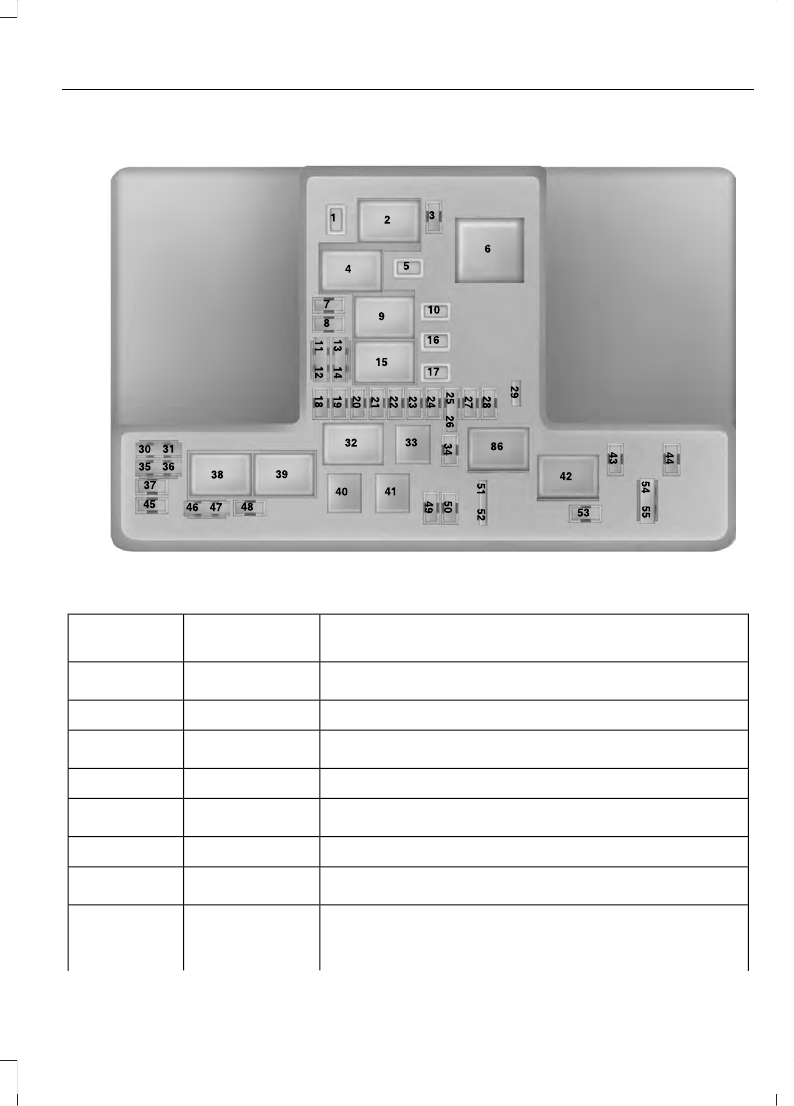

E190797
Protected Component
Fuse Rating
Fuse or Relay
Number
Not used (spare).
15A
1
1
Starter motor solenoid relay.
-
2
Rain sensor.
5A
2
3
Blower motor relay.
-
4
Auxiliary power point 3 - console rear.
20A
1
5
Trailer park lamp relay.
-
6
Powertrain control module.
20A
2
7
Canister vent solenoid.
20A
2
8
Fuel vapor shutoff valve.
Canister purge valve.
249
Fuses
Protected Component
Fuse Rating
Fuse or Relay
Number
Variable cam timing valve 1 and 2.
Heated oxygen sensors.
Powertrain control module relay.
-
9
Auxiliary power point 1 - instrument panel.
20A
1
10
Ignition coils.
15A
3
11
A/C control drive.
15A
3
12
Transaxle warmer.
Auxiliary water pump.
Aspirator valve control.
Fan clutch.
Oil pump.
Turbo bypass.
Not used (spare).
15A
3
13
Not used (spare).
15A
3
14
Run/start relay.
-
15
Auxiliary power point 2 - instrument panel.
20A
1
16
Auxiliary power point - rear cargo area.
20A
1
17
Not used (spare).
10A
2
18
Electric power assist steering.
10A
2
19
Lighting control switch.
10A
2
20
Transmission Run/Start relay.
5A
2
21
Air conditioning compressor.
10A
2
22
Voltage quality module.
7.5A
2
23
Not used (spare).
10A
2
24
Anti-lock brake system.
10A
3
25
250
Fuses
Protected Component
Fuse Rating
Fuse or Relay
Number
Not used (spare).
10A
3
26
Not used.
-
27
Powertrain control module.
10A
2
28
USB charge port.
7.5A
2
29
Not used.
-
30
Not used.
-
31
Fuel pump relay.
-
32
A/C clutch relay.
-
33
Trailer reverse lamp.
10A
2
34
Not used (spare).
15A
2
35
Not used.
-
36
Heated exterior mirror.
10A
2
37
Trailer right-hand turn and stop lamp relay.
-
38
Trailer left-hand turn and stop lamp relay.
-
39
Trailer reverse lamp relay.
-
40
Horn relay.
-
41
4WD (four-wheel drive) motor no. 2 relay.
-
42
Not used.
-
43
Not used.
-
44
Not used (spare).
5A
2
45
Not used (spare).
10A
3
46
Brake pedal switch.
10A
3
47
Horn.
20A
2
48
251
Fuses
Protected Component
Fuse Rating
Fuse or Relay
Number
Transmission control module. Oil pump.
15A
2
49
Wiper park heater.
10A
2
50
Not used.
-
51
Not used.
-
52
Rear differential lock.
15A
2
53
Not used.
-
54
Not used.
-
55
4WD motor no. 1 relay.
-
86
1
M-type fuse.
2
Micro 2 fuse.
3
Micro 3 fuse.

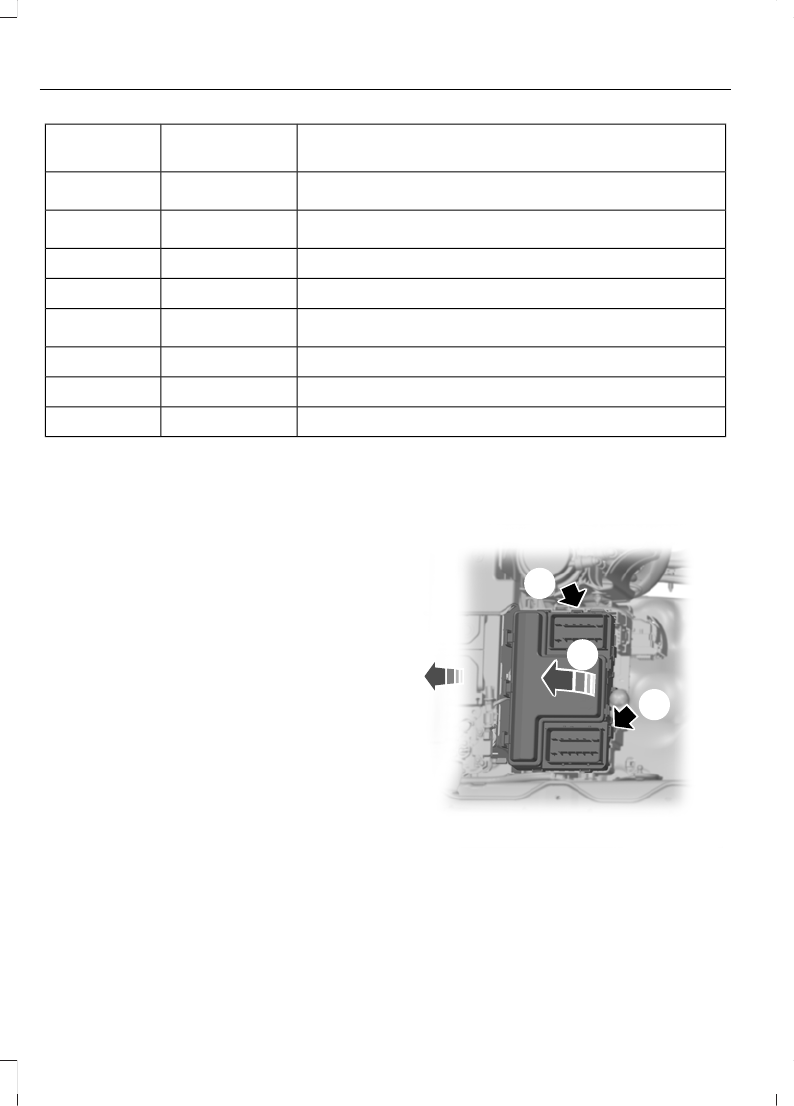

Power Distribution Box - Bottom
There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box:
A
1
2
E206171
1
Toward the front side of the
vehicle.
A
1.
Release the two latches on both sides
of the fuse box.
252
Fuses

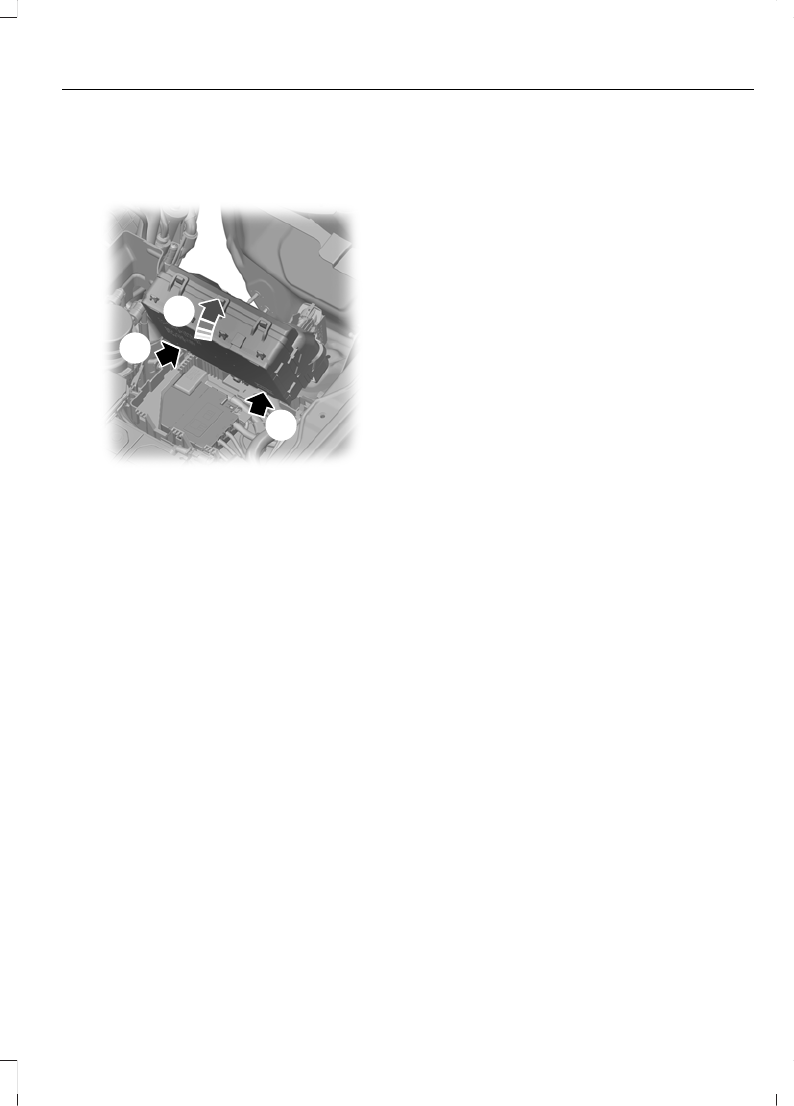

2. Raise the rear side of the fuse box from
the cradle.
3
5
5
E206174
3. Move the fuse box toward the rear side
of the engine compartment and rotate
as shown.
4. Pivot the rear side of the fuse box to
access the bottom side.
5. Release the two latches to open the
fuse cover.
253
Fuses

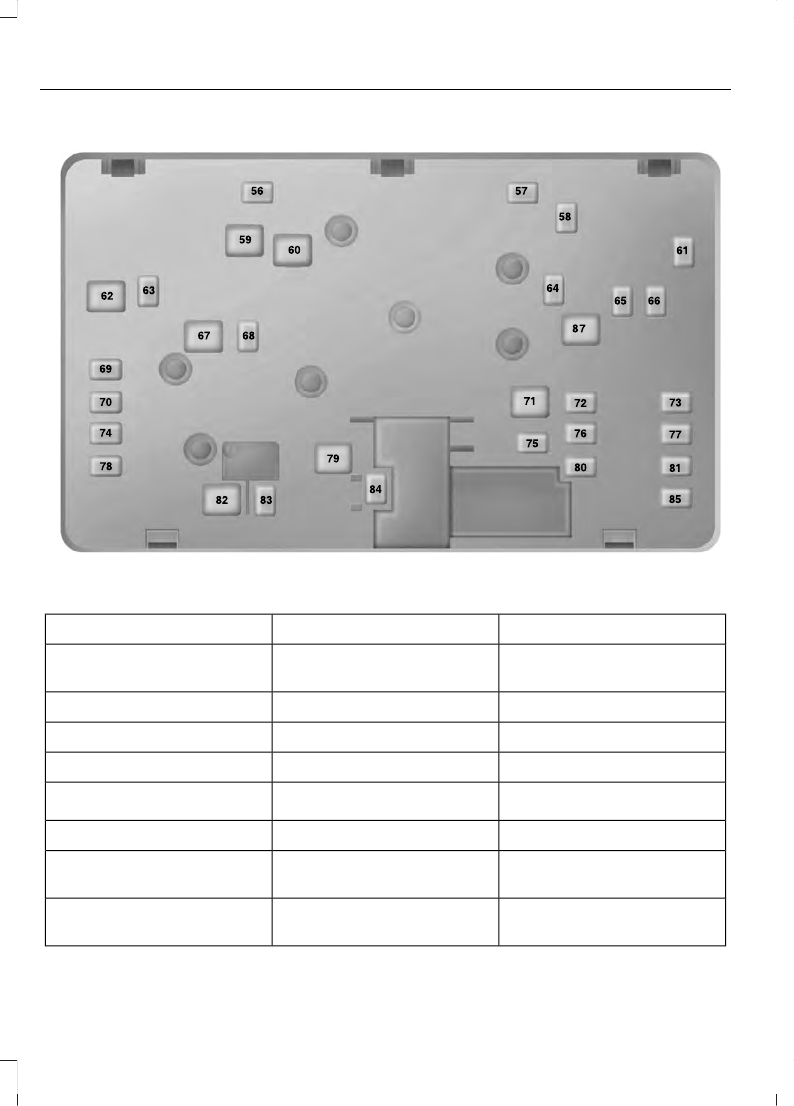

E190798
Protected Component
Fuse Rating
Fuse or Relay Number
Trailer left-hand turn and
stop.
15A
1
56
Not used.
-
57
Not used.
-
58
Not used.
-
59
Fuel pump control module.
30A
2
60
Not used.
-
61
Body control module 1 -
lighting.
50A
2
62
Trailer right-hand turn and
stop.
15A
1
63
254
Fuses
Protected Component
Fuse Rating
Fuse or Relay Number
Trailer brakes.
30A
1
64
Heated driver seat.
20A
1
65
Four-wheel drive.
25A
1
66
Body control module 2 -
lighting.
50A
2
67
Rear window defroster.
30A
1
68
Anti-lock brake system
valves.
30A
1
69
Passenger power seat.
30A
1
70
Trailer park lamps.
25A
2
71
Not used.
-
72
Trailer module.
30A
1
73
Driver power seat.
30A
1
74
Not used.
-
75
Not used.
-
76
Not used.
-
77
Not used.
-
78
Blower motor.
40A
2
79
Heated passenger seat.
20A
1
80
Inverter.
40A
1
81
Anti-lock brake system
pump.
60A
2
82
Windshield wiper motor.
30A
1
83
Starter motor solenoid.
30A
1
84
255
Fuses
Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
-
85
Trailer module.
40A
2
87
1
M-type fuse.
2
LPJ-type fuse.

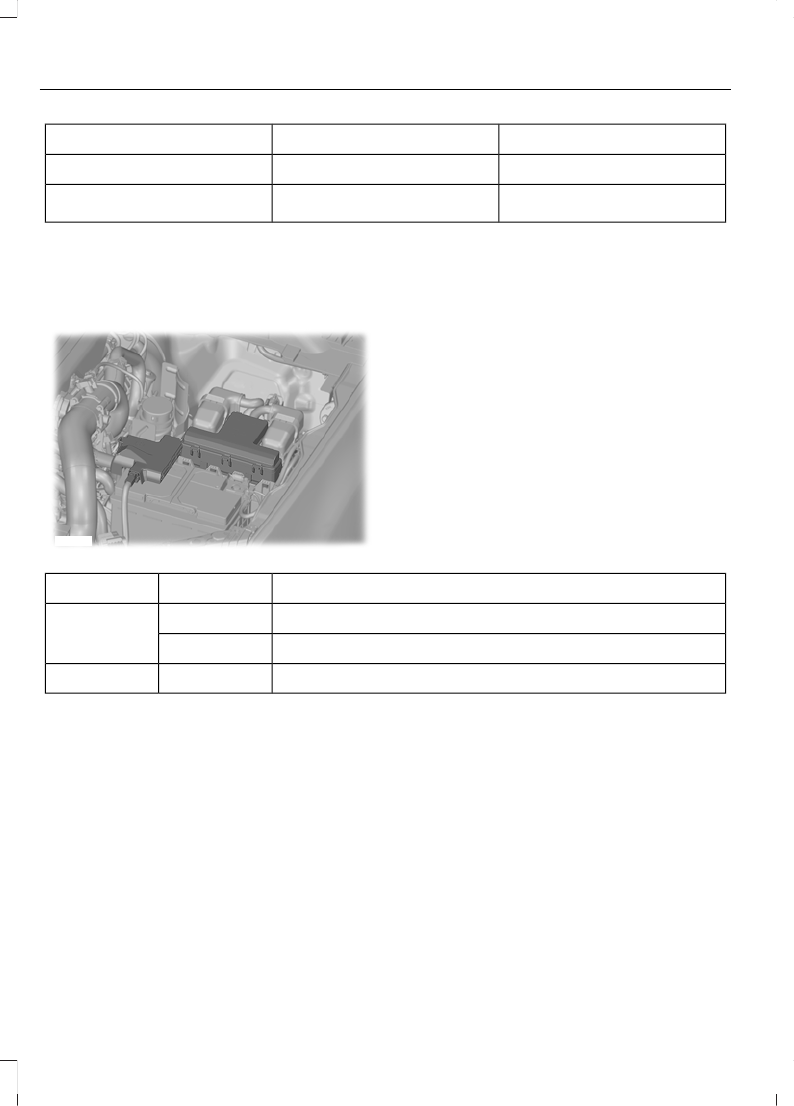

Battery Mounted Fuse Link
E200936
Protected Component
Fuse Rating
Fuse Number
Alternator (with auxiliary fuse and relay box).
300A
1
Alternator (without auxiliary fuse and relay box).
225A
Electronic power assist steering.
125A
2
256
Fuses
High Current Fuse Box
E206158
Protected Component
Fuse Rating
Fuse Number
Not used.
-
1
Body control module.
125A
2
Voltage quality module (supplies rear lamp blind spot,
rear view camera, head up display, 4x4 switch, image
processing module and adaptive cruise control radar).
50A
3
Busbar through to power distribution box.
-
4
Auxiliary fuse and relay box.
100A
5

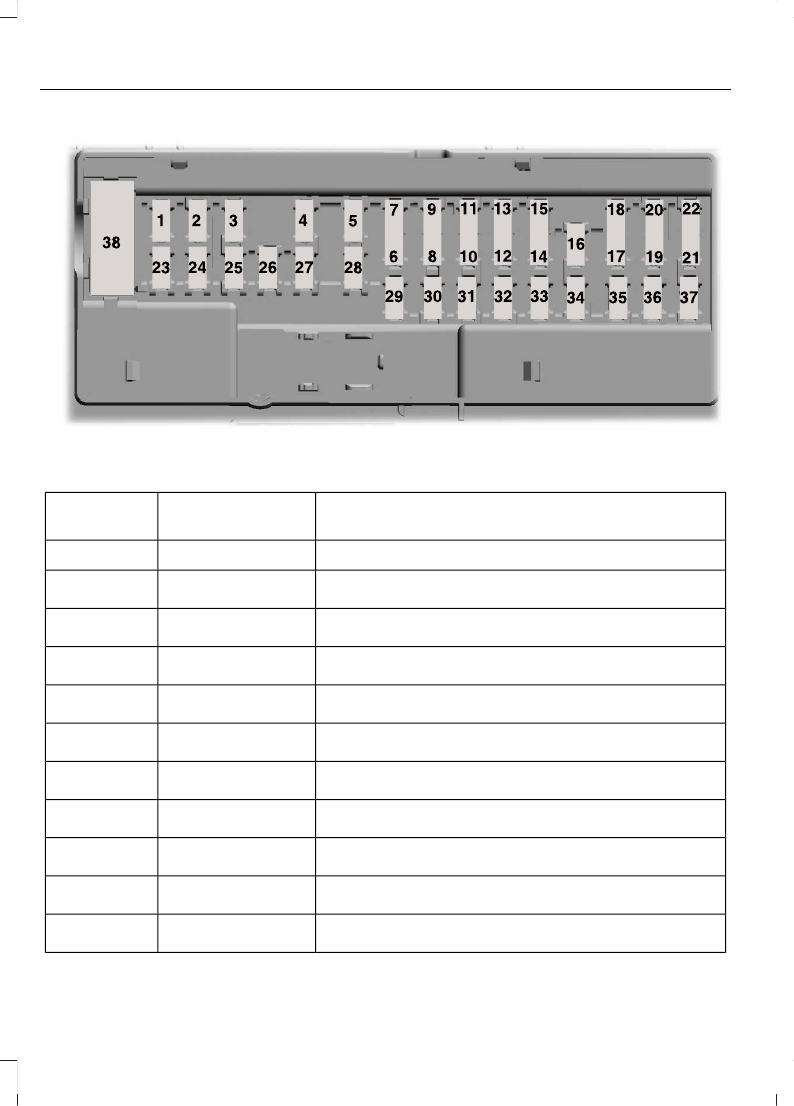

Passenger Compartment Fuse Box
The fuse box is below and outboard of the
steering column behind the access cover.
257
Fuses
E145984
Protected Component
Fuse Rating
Fuse or Relay
Number
Not used.
-
1
Not used (spare).
7.5A
1
2
Driver door lock.
20A
1
3
Not used (spare).
5A
1
4
Branded audio amplifier.
20A
1
5
Not used (spare).
10A
2
6
Not used (spare).
10A
2
7
Anti-theft alarm horn.
10A
2
8
Telematics.
10A
2
9
Not used (spare).
5A
2
10
Not used (spare).
5A
2
11
258
Fuses
Protected Component
Fuse Rating
Fuse or Relay
Number
Electronic control panel.
7.5A
2
12
Climate control.
Instrument cluster.
7.5A
2
13
Steering column control module.
Data link connector.
Extended power module (for restraints module and
occupant module).
10A
2
14
SYNC Module.
10A
2
15
Data link connector.
Not used (spare).
15A
1
16
Not used (spare).
5A
2
17
Ignition switch.
5A
2
18
Lock solenoid.
Push button start.
Extended power module (for restraints module and
occupant module).
7.5A
2
19
Auxiliary switches.
7.5A
2
20
Humidity and in-car temperature sensor.
5A
2
21
Not used (spare).
5A
2
22
Inverter.
10A
1
23
Door lock switch.
Central locking system.
20A
1
24
Driver door power window.
30A
1
25
Not used (spare).
30A
1
26
Not used (spare).
30A
1
27
Branded audio amplifier.
20A
1
28
Not used (spare).
30A
1
29
259
Fuses
Protected Component
Fuse Rating
Fuse or Relay
Number
Not used (spare).
30A
1
30
SYNC.
15A
1
31
Radio transceiver module.
10A
1
32
Door entry remote.
Audio unit.
20A
1
33
Run/start relay.
30A
1
34
Not used (spare).
5A
1
35
Auto-dimming interior mirror.
15A
1
36
Mirror adjustment control.
Not used (spare).
20A
1
37
Power windows.
30A
3
38
1
Micro 2 fuse.
2
Micro 3 fuse.
3
PTC fuse.

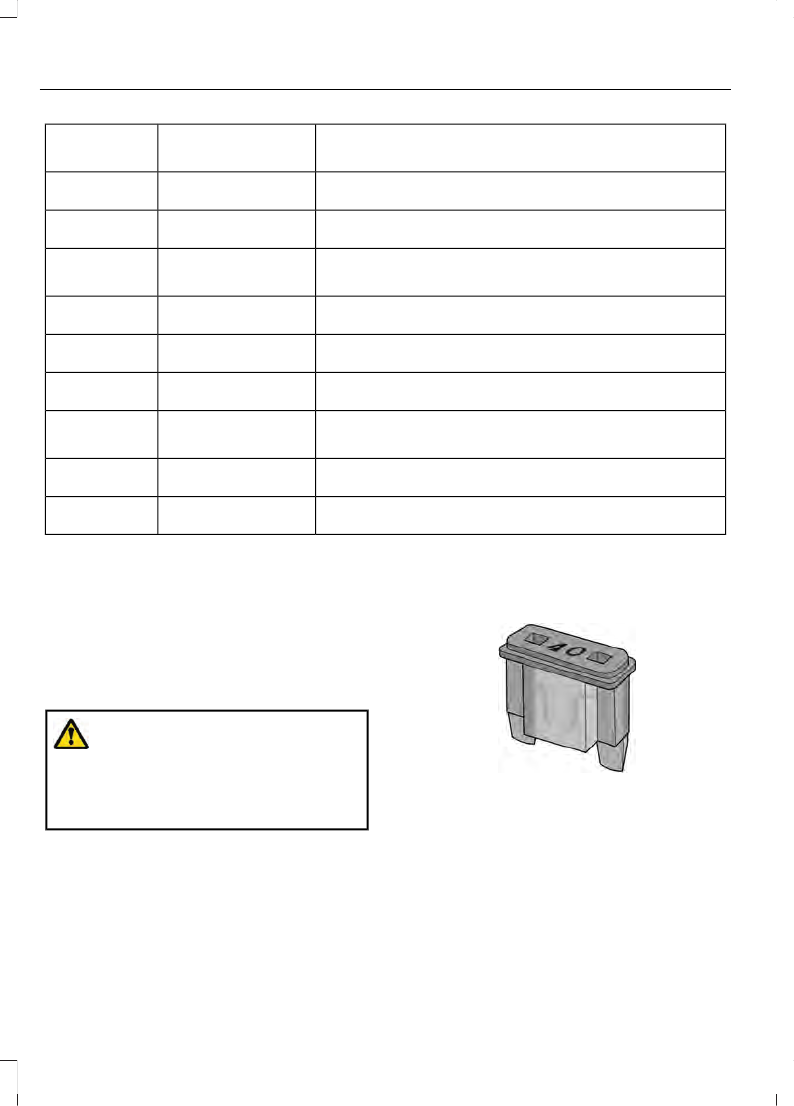

CHANGING A FUSE
Fuses
WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.
E217331
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
260
Fuses

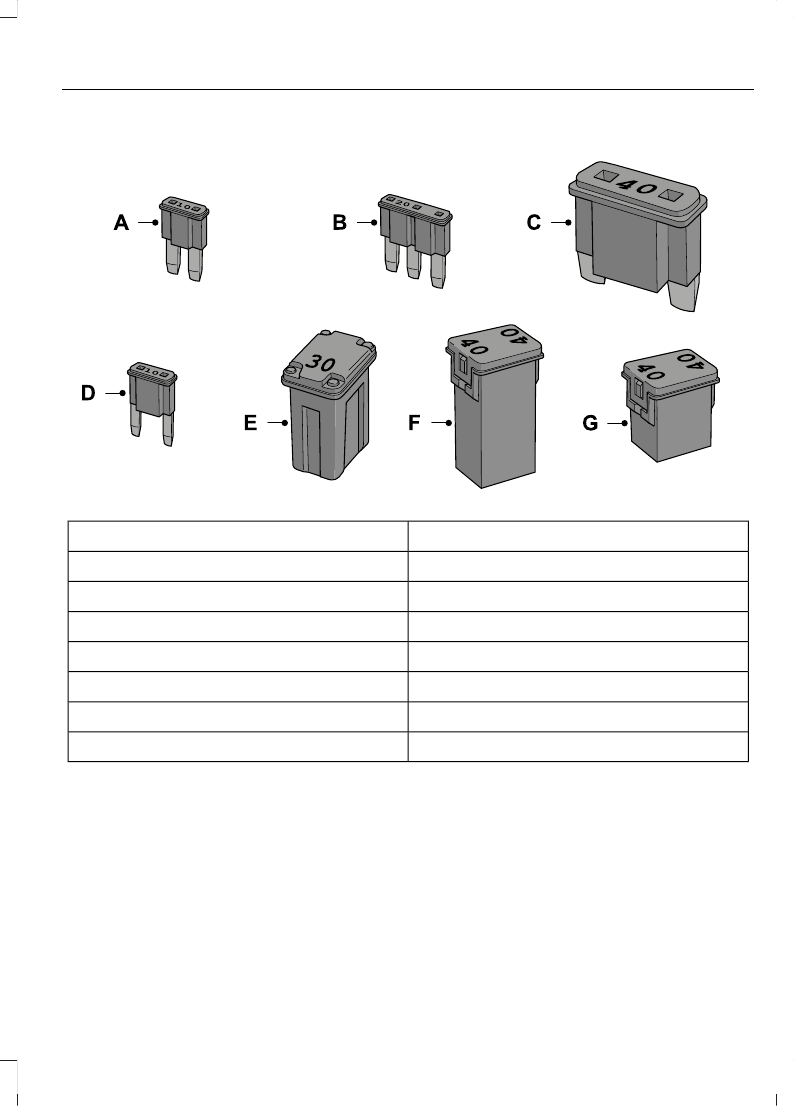

Fuse Types
E207206
Fuse Type
Callout
Micro 2
A
Micro 3
B
Maxi
C
Mini
D
M Case
E
J Case
F
J Case Low Profile
G
261
